Equipped with various functions for efficient medical treatment.

・Dual purpose : Ordinary & close-up photography
・Single shutter : Polarized, non-polarized, and 405nm modes
・Guide : Scale display
・Record an entire area : Wide area shots
・Low distortion : Special lens
・Bright and clear : LED lights
・Easy to view : Tilt display
・External monitor : HDMI connector
・Observe movement : Movie shooting

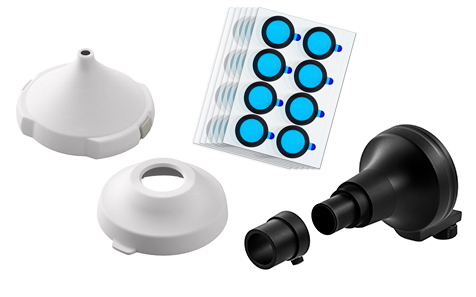

Convenient options that make observation even easier are available
・Small-diameter & 3D adapter set / DAS-100M
・Microscope adapter / DMS-100M
・Lithium ion battery / DNP-100M
・Protective film / DFP-100M

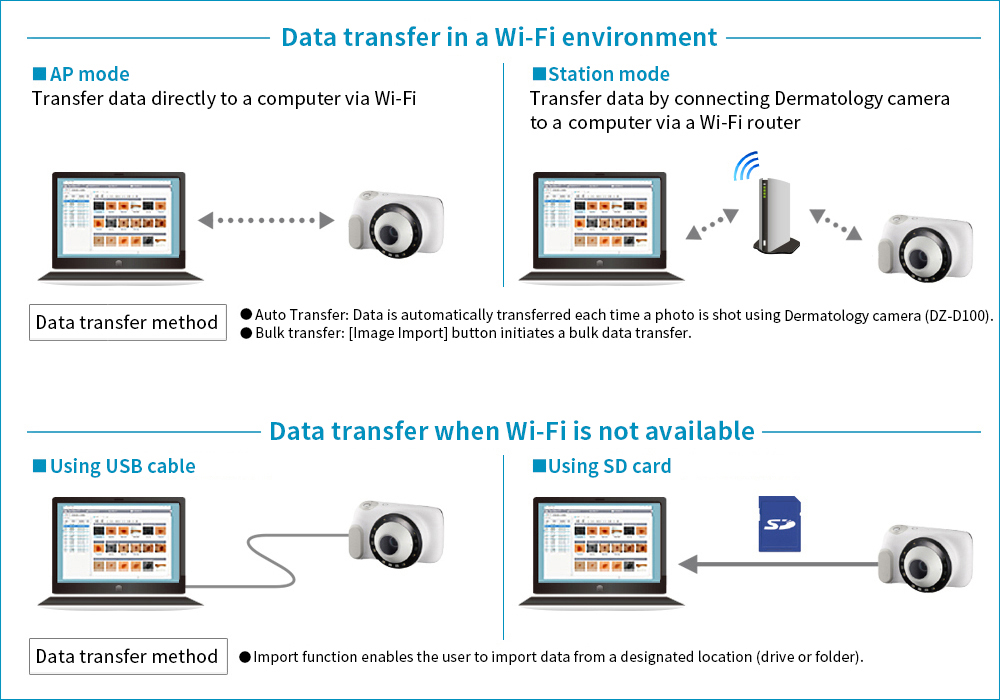

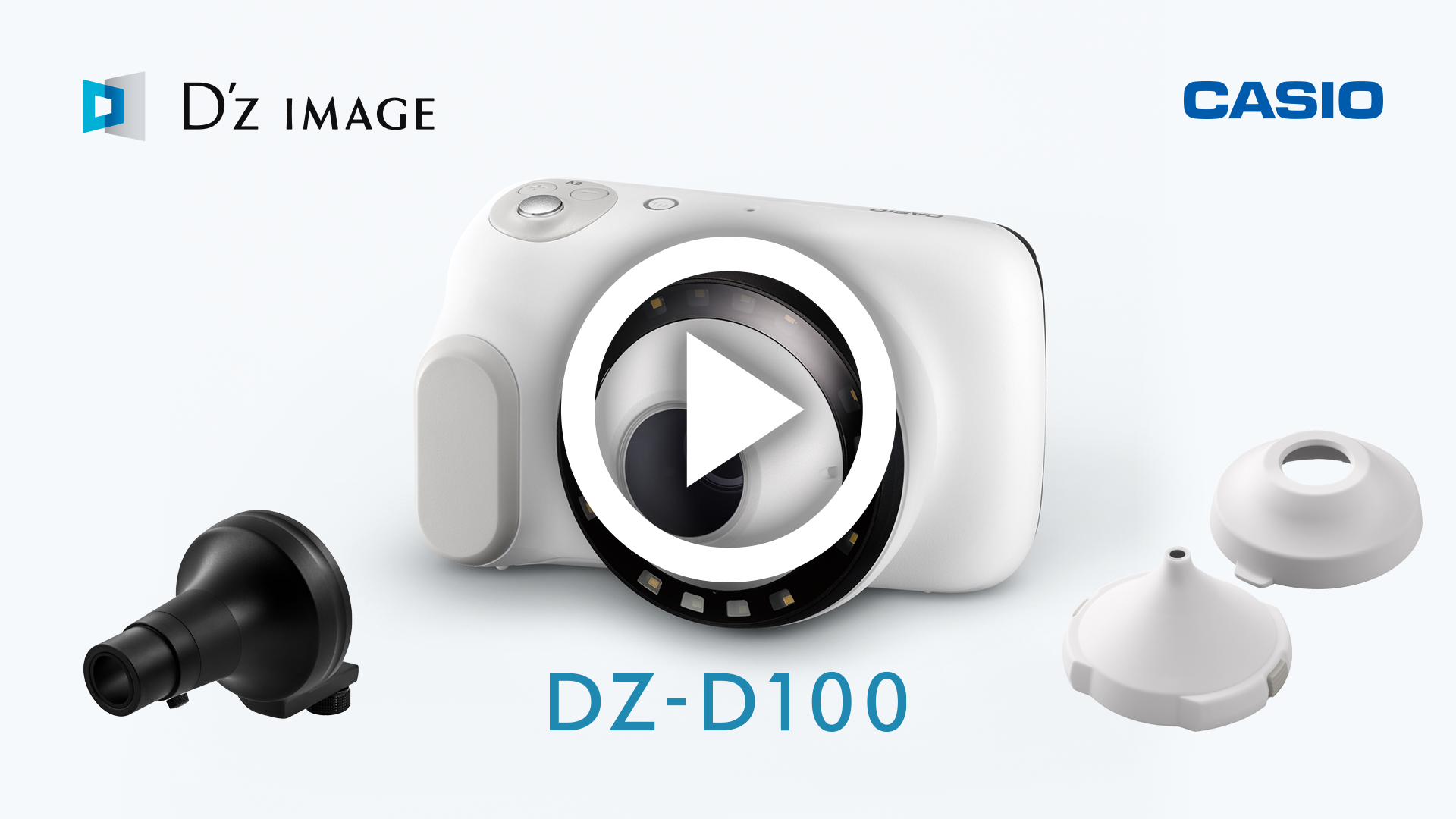

Dermatology camera DZ-D100 photos and videos can be easily managed on a personal computer using the D'z IMAGE Viewer D application software. Magnifying images is made simple.

Compact and lightweight design makes it easy to hold, achieved a grip shape and a highly practical design. Simple button layout focusing on frequently used operations.

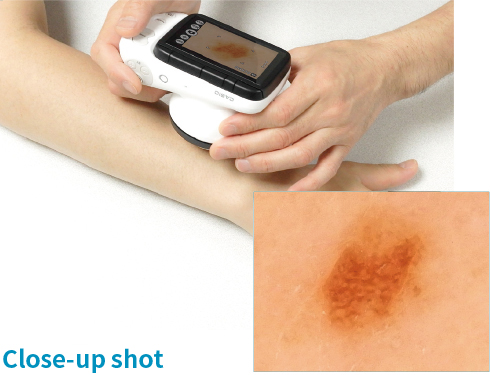

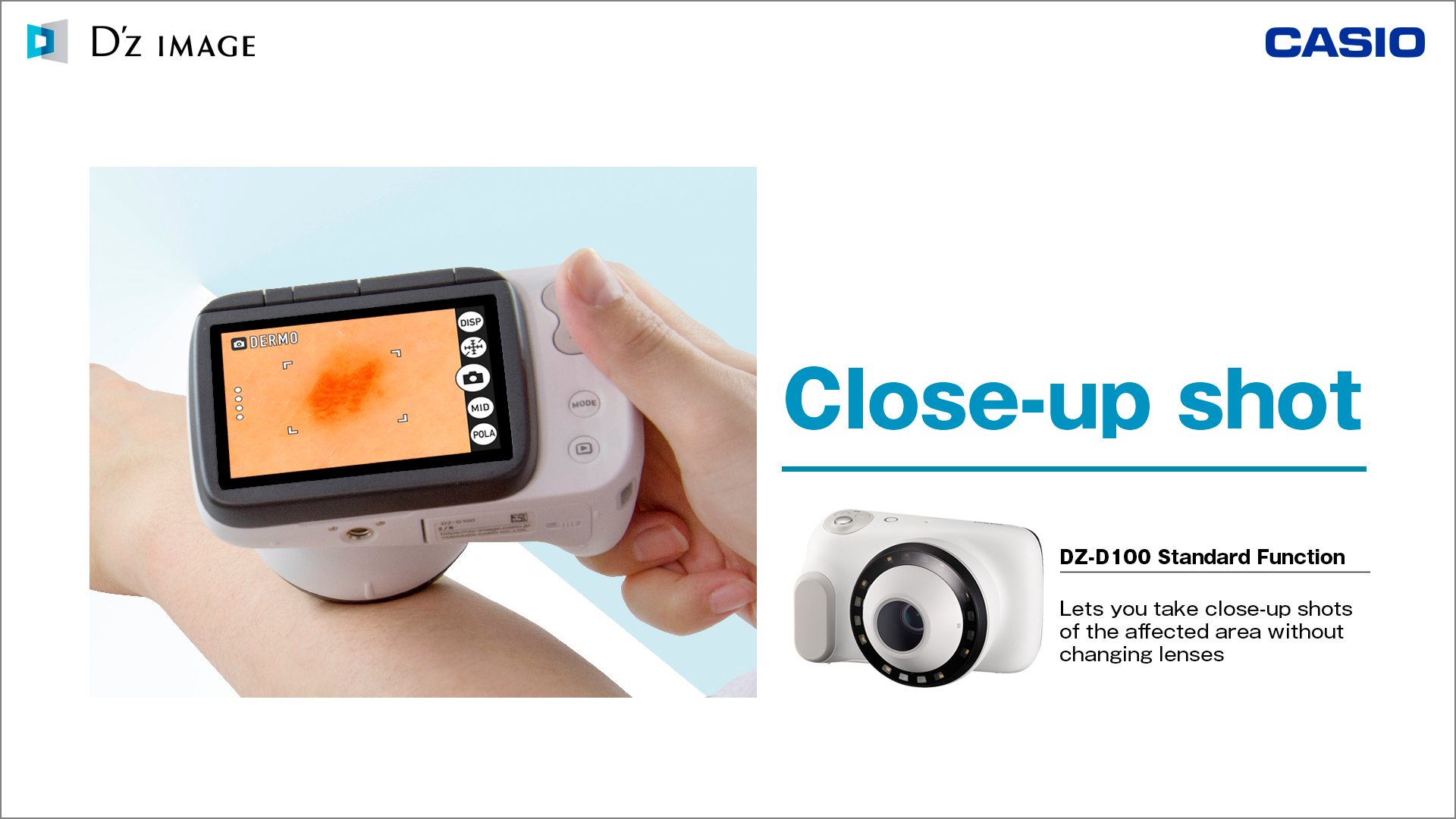

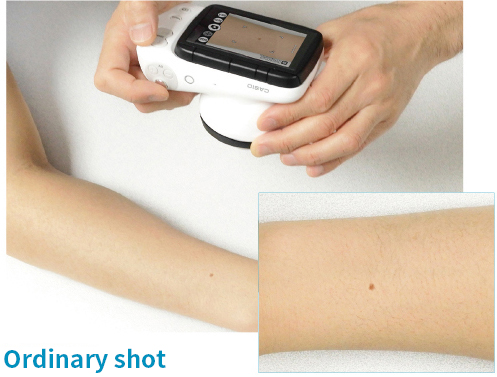

Both ordinary and close-up shots can be taken without switching lenses. From photographs of the entire affected area to enlarged photographs of the lesion area, you can take beautiful and speedy photographs within the limited consultation time.
* Ordinary and close-up videos can be also taken.

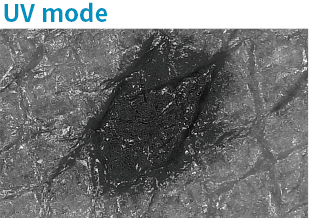

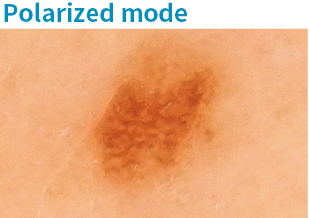

A single click of the shutter can yield polarized, non-polarized, and 405nm photos. No switching of filter is required, which saves time.
* 405nm photos snapped at 405nm wavelength.
* 405nm mode set with a single ON/OFF switch.

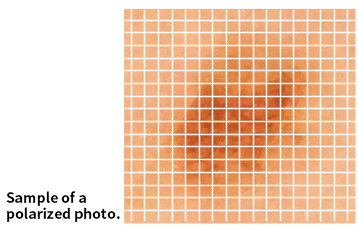

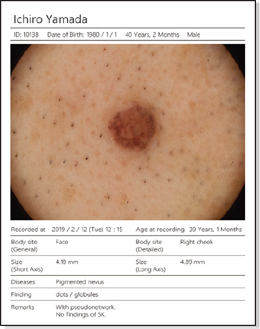

This function superposes a scale over a close-up image. Immediately showing the size of the affected area. Touch the scale to rotate it in the direction needed to indicate size as a guide.

The user can photograph the entire affected area, such as the back, which is useful in observing the course of a lesion.

Images are clear all the way to the edges, making it possible to accurately see the shape of the affected area ; and their high-resolution captures microstructures in the affected are with fine precision.

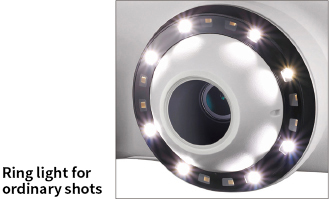

When taking an ordinary photo, uniform illumination from the ring light outside the lens enables faithful reproduction of color tone. In close-up mode, illumination from inside the lens yields a stable clear image quality.

The LCD monitor can be tilted to different angles for easy visibility under all conditions

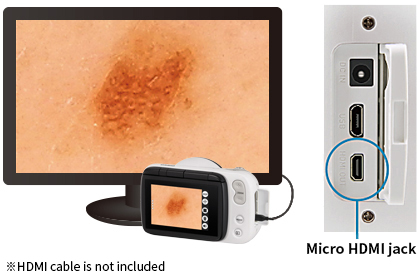

The camera can be connected via HDMI cable to a large monitor or projection screen for viewing of images, either in real time or afterwards. This is useful for providing explanations to patients or making presentations at conference.

Can record the movement of the "Wobbler test"

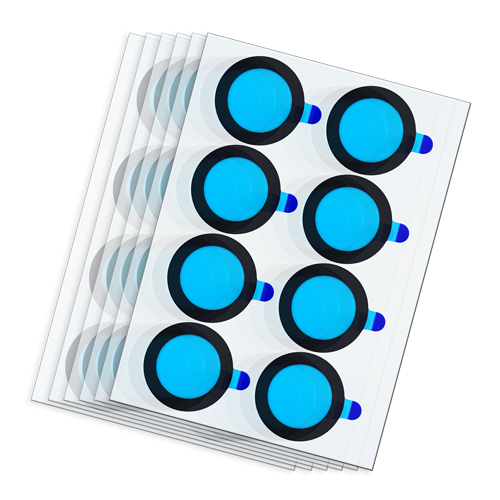

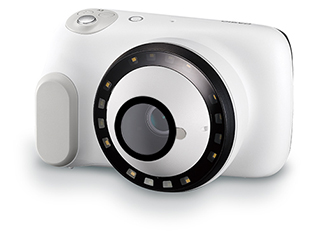

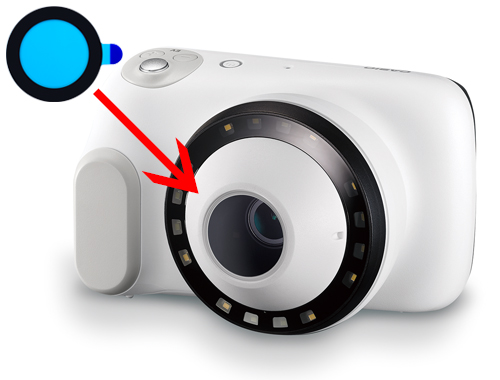

The protective film discs are applied directly onto the camera lens to protect it from scratches and dirt. Package includes 15 sheets which each contain 8 discs. Expires 6 months after opening. Single use only.

How to use

Remove the protective film from the backing,
and apply onto the camera lens.

When ready for use, peel off the blue sheet on the surface of the protective film.

When photographing lesions in locations that are difficult to focus on, such as between fingers or inside an ear, fit the small-diameter adapter to the camera to take the shot. The angle of view is 6mm.

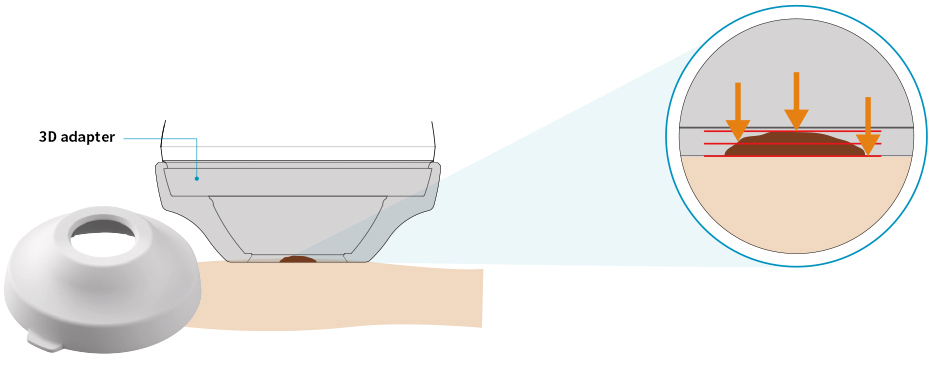

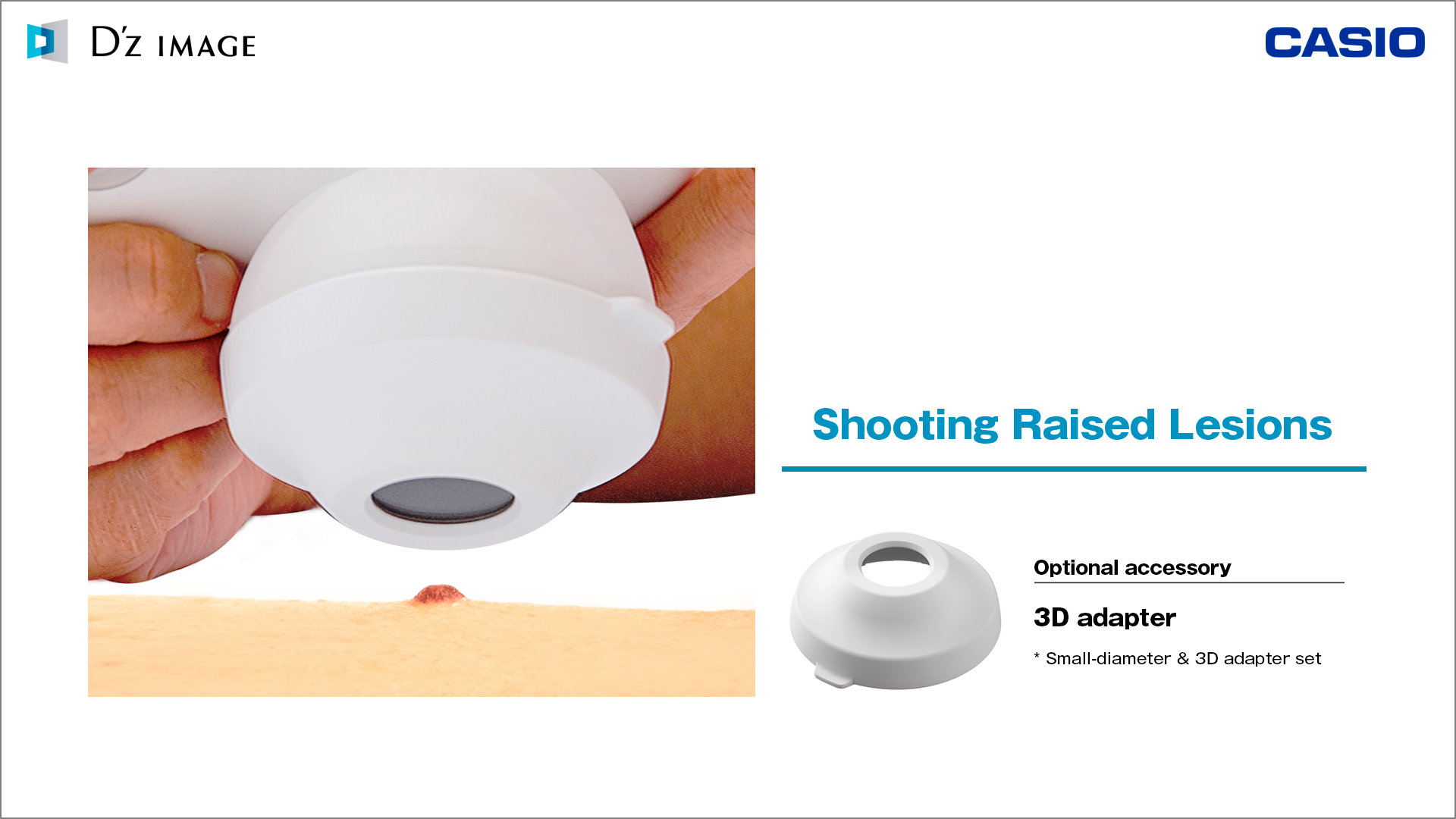

This adapter holds the camera lens about 2mm away from the surface of the skin so it can be photographed without the lens pressing against a swollen lesion. The 3D adapter also facilitates the use of DERMO AIF (All In Focus) mode.

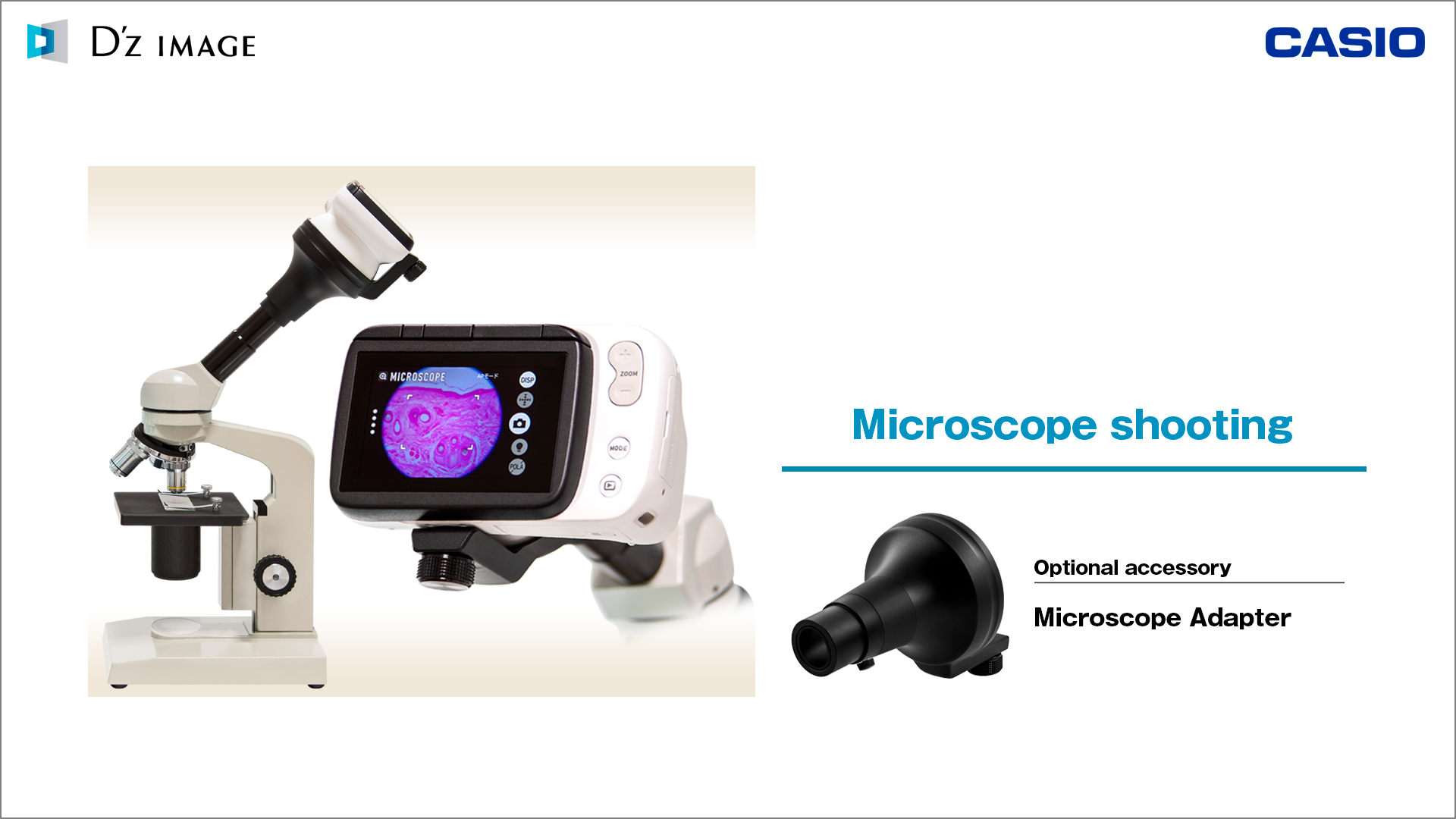

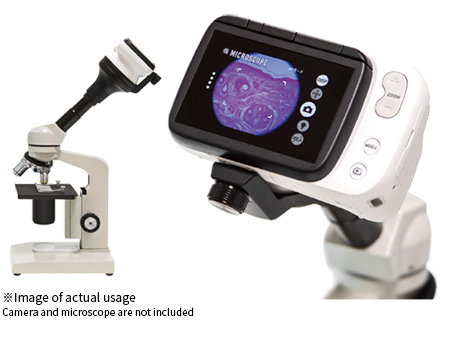

This adapter makes it possible to mount Dermatology camera DZ-D100 to the eyepiece of a microscope. It can be mounted to eyepieces with an inner diameter of either 23.2mm or 30.0mm. The user can take pathological images observed through a microscope and can also use an HDMI cable to display images on an external monitor.

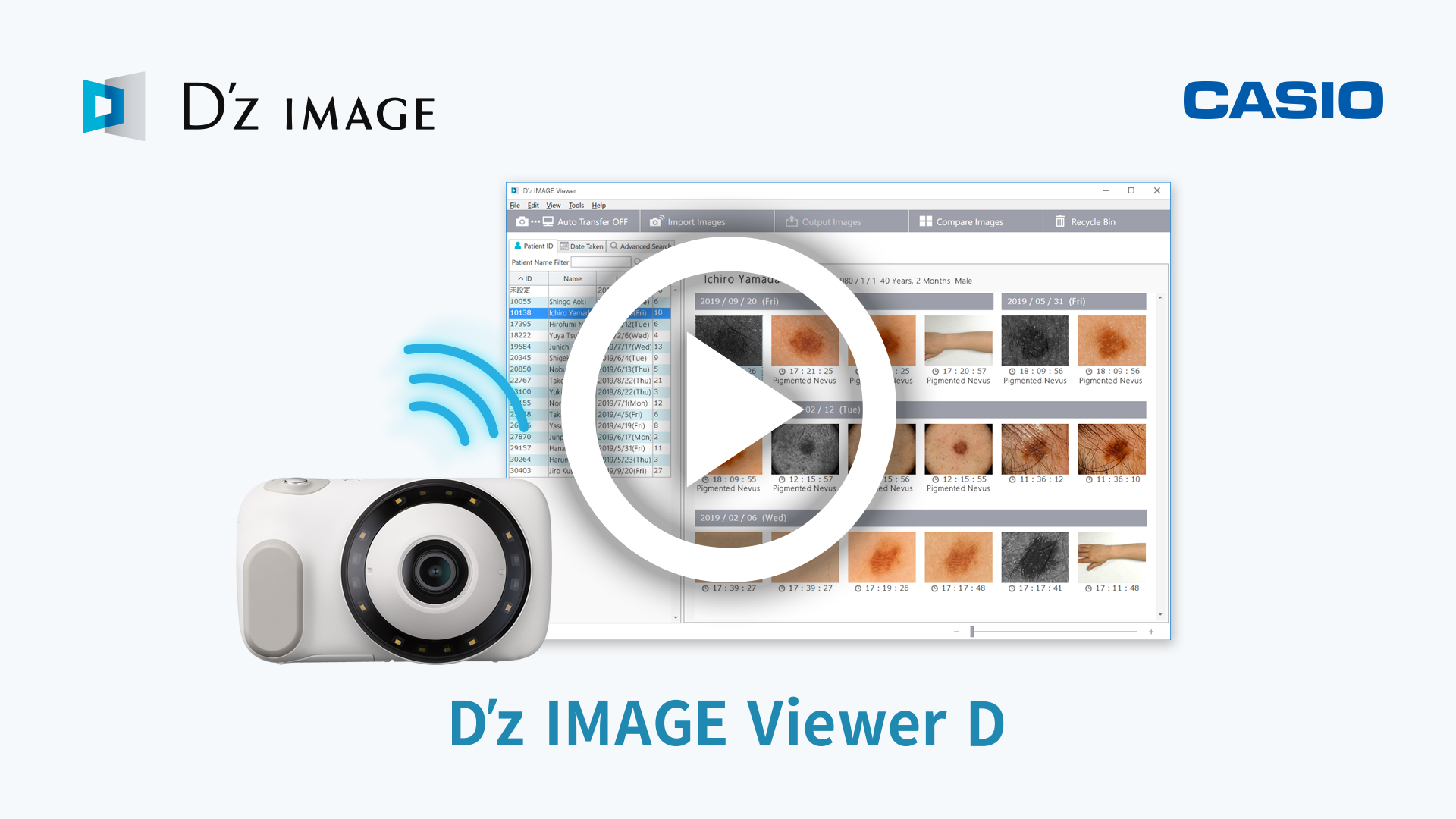

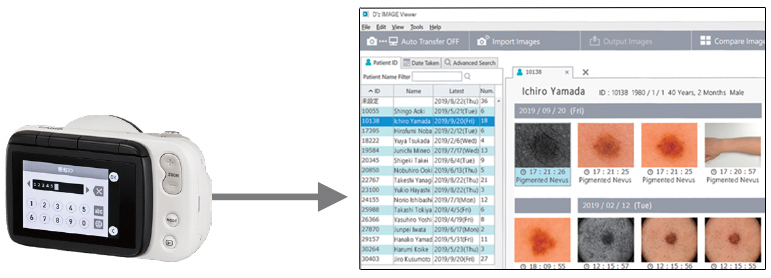

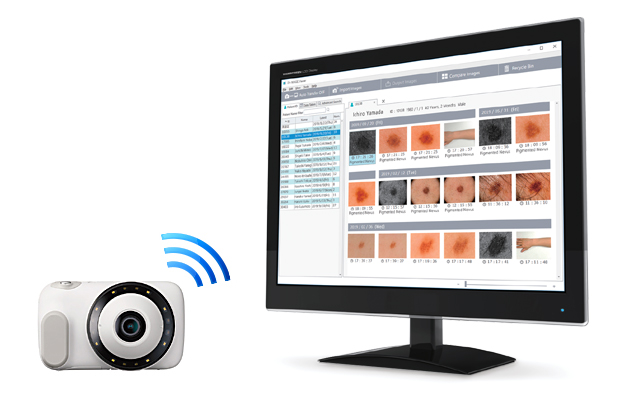

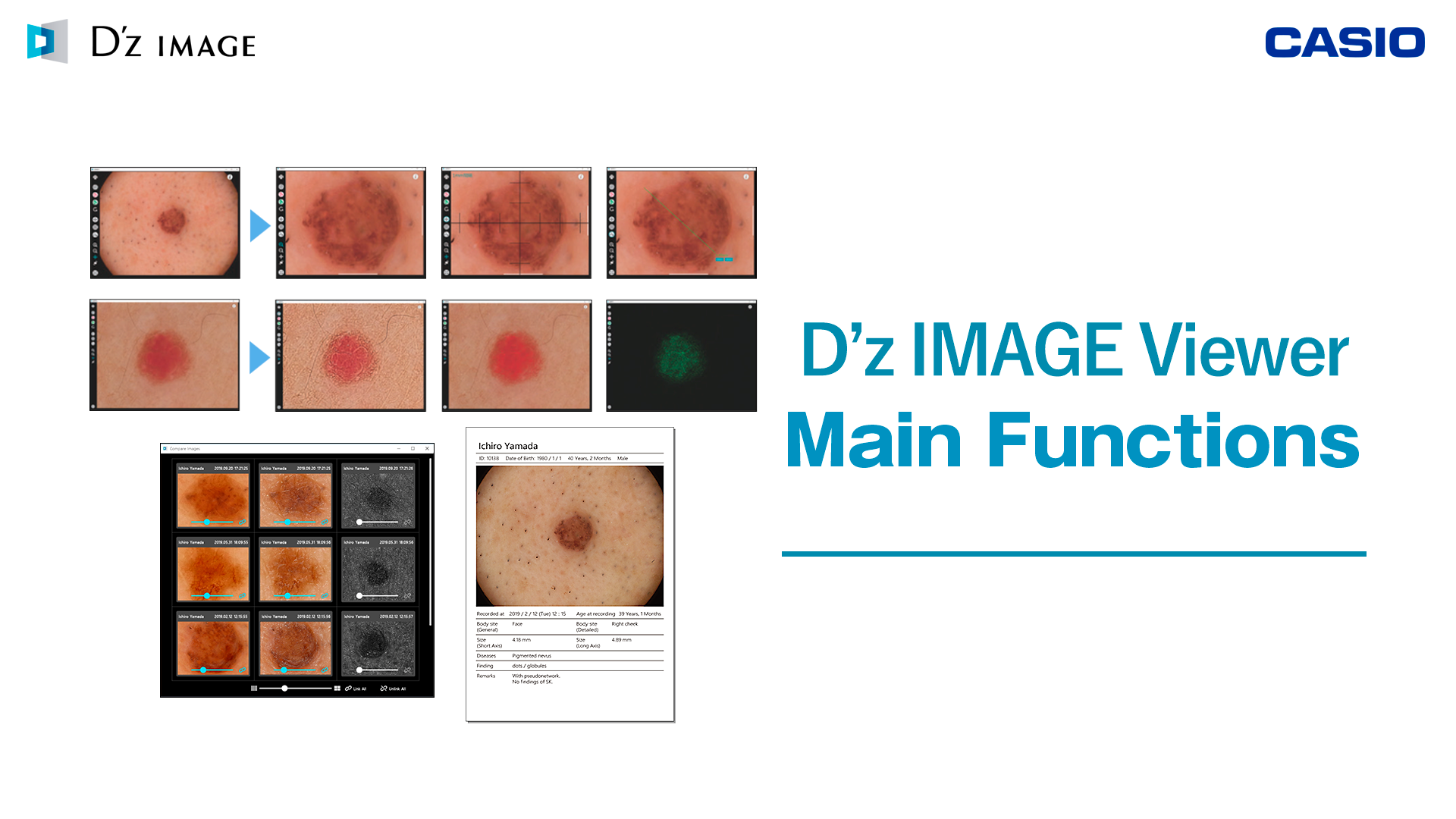

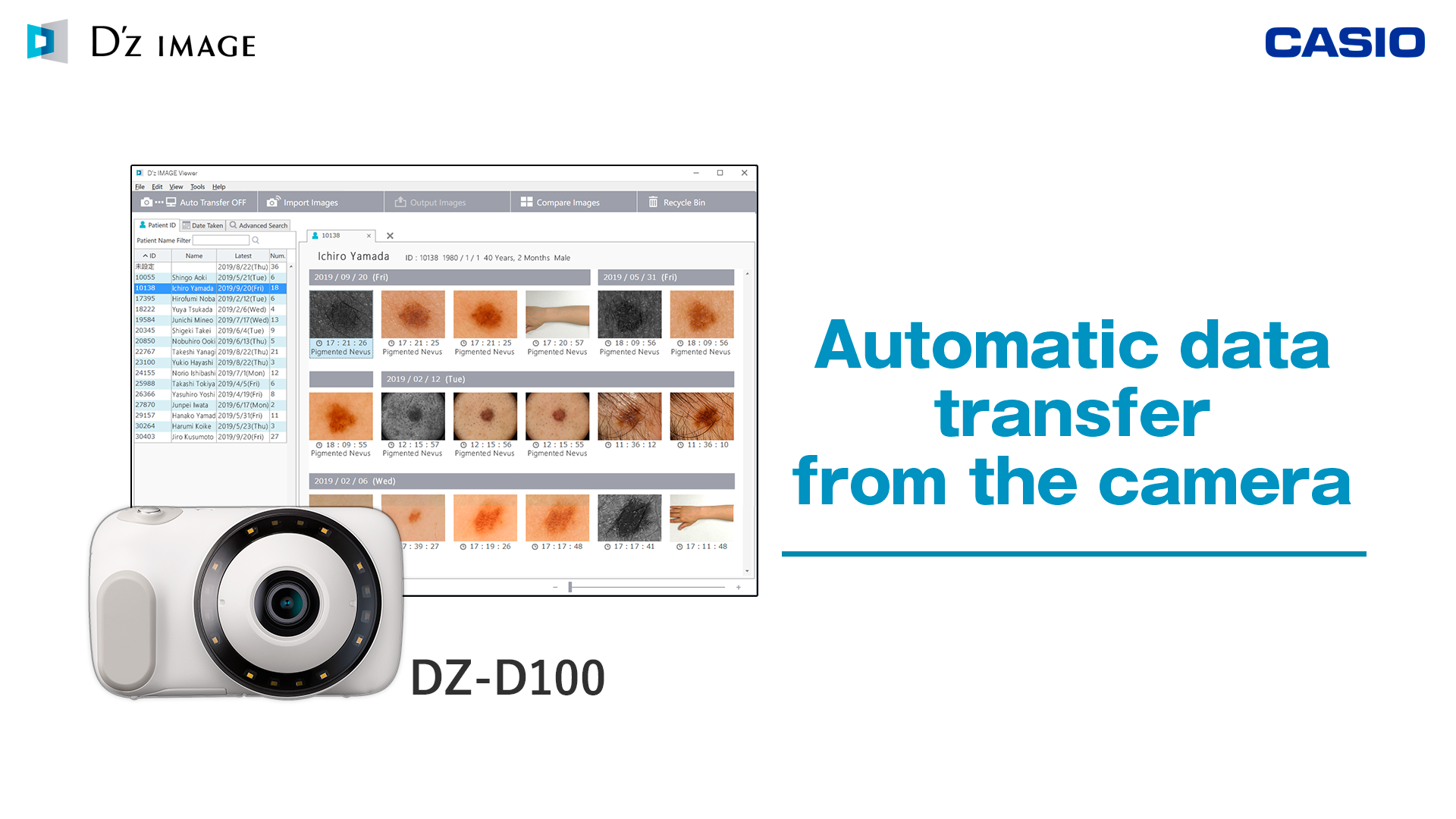

Dermatology camera DZ-D100 photos and videos can be easily managed on a personal computer using the D'z IMAGE Viewer D application software. Magnifying and comparing images is made simple.

D'z IMAGE Viewer D automatically sorts images tagged with patient IDs.

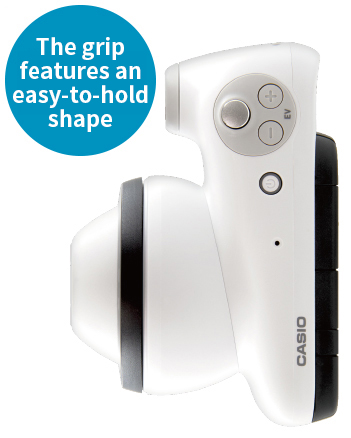

The grip features an easy-to-hold shape, and the round shape of the camera is soothing to jittery patients, while the white color and compact body create a clean appearance. These design features put high priority on the type of usability requested by doctors.

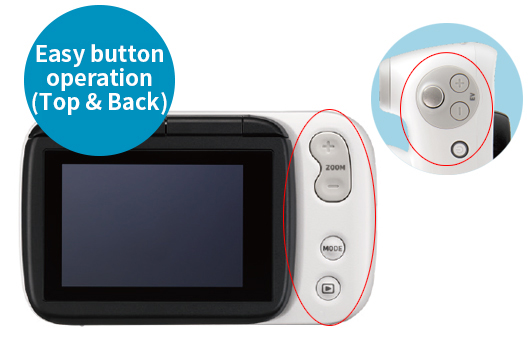

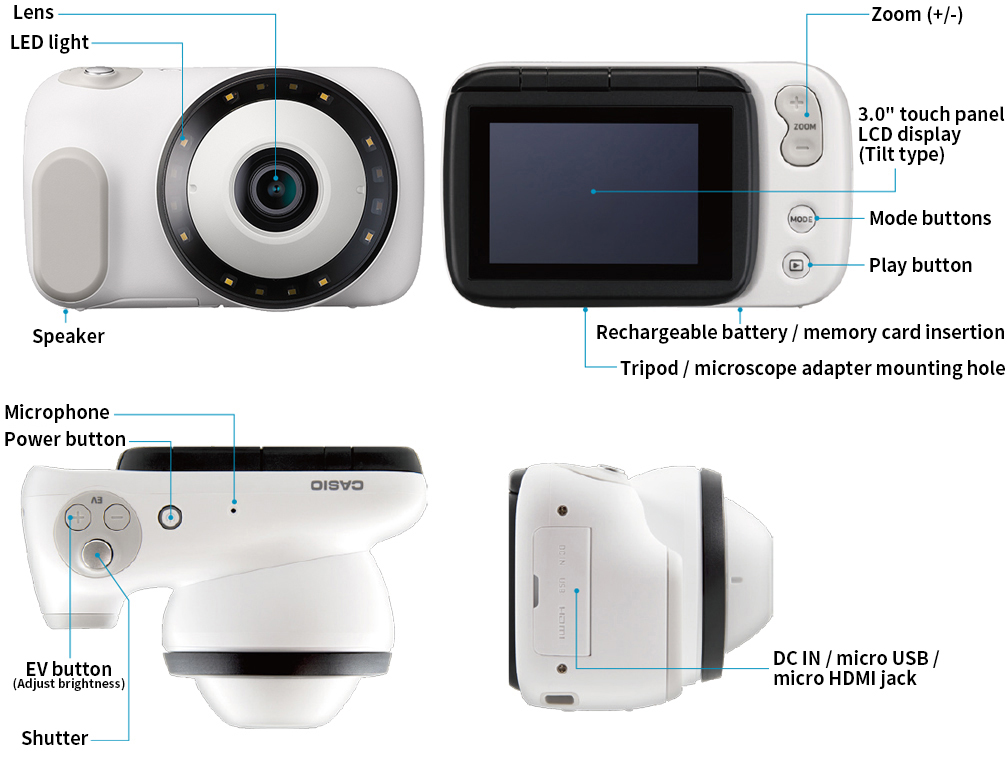

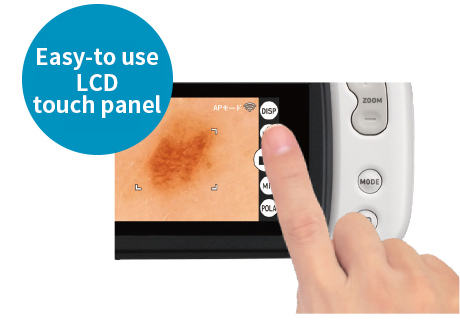

Frequently used operations are assigned to easily located buttons.
With a single touch of a button, the user can switch between close-up mode, microscope mode, and other modes that make for convenient dermal observations.
