DZ-C100
This camera for cervix observation and photography was designed to meet the requests of front-line clinical practitioners.
Casio's unique camera and image processing technologies have been integrated into this single unit to provide useful functions for cervical observation.
Optimal miniaturization for front-line clinical practitioners has been achieved by combining the lighting and photography functions into one device.
Operability is enhanced by using together with a camera stand designed to be compact and convenient to use. This easy-to-operate observation tool provides steady support for medical professionals.
DZ-C100
Basic information
Model name
DZ-C100
Bundled accessories
Lithium-ion battery (DNP-100M), AC adapter for charging main body, lens cap
Included
*Specifications of the battery vary depending on the country of sale, and the image shown is an example.
Detailed function
Normal light, Green light, Polarized light modes with single shutter
Three kinds of images can be taken in normal, green and polarized light with the same angle of view with a single shutter release.
This mode shines a white light to enable simple examination.
This mode makes the observation of vascular findings easy by shining a green light. Adjustable in ±3 steps. The attached image above is ±0
This mode blocks light emission from the surface, making it easier to observe the condition of the beneath of the uterine cervix.
Easy-To-Use Touch Focus Function
When touching the part on the LCD monitor, the camera automatically focus for the subject it is pointed out.
The focused on position can be enlarged with the ZOOM button.
The focusing frame moves to the touched position, and the area is focused on.
The focused on position moves to the center of the LCD monitor to allow the affected area to be enlarged for observation.
Quick and Easy Photo Capture and Video Recording
After focusing, you can take a photo also by pressing the shutter on the monitor.
In addition, with video shooting, by operation on the LCD monitor, you can start and stop recording, or change the focused on position.
The video function can be used to record the time between disappearance and definition of capillaries observed in an acetic acid test.
Photos can be taken by shutter operation on the LCD monitor
Record video of the changes during an acetic acid test.
Easy to view : Tilt LCD monitor
The LCD monitor can be tilted to different angles for easy visibility under all conditions
External monitor
HDMI connector
The camera can be connected via HDMI cable to a large monitor or projection screen for viewing of images, either in real time or afterwards. This is useful for providing explanations to patients or making presentations at conference.
Optional accessories
CAMERASTAND CST-100M
A specially designed stand allows for smooth and precise camera movement for easy positioning during observation. It is compact, lightweight, and designed for excellent maneuverability and storage convenience.
DZ-C100 Protective film
D'z IMAGE Viewer C (Image management software)
More efficient image management and observation with PC
COLPOCAMERA photos and videos can be easily managed on a personal computer using the D'z IMAGE Viewer C application software.
This software helps you magnify and convert images easily.

Operation environment:
【OS】Windows®11,Windows®10
- Only 64-bit version.
- Display : Recommended 1280＊720（16 : 9）TRUE COLOR (32bit) color, or higher
Click here for free download
Data transfer to PC
Data transfer method
About USB cable
Use a USB 2.0 (Hi-Speed) compliant cable with a micro USB Type B connector for the camera port.
Please note that some cables are charge-only, which are not capable of data transfer.
Automatic sorting by patient ID
D'z IMAGE Viewer D automatically sorts images tagged with patient IDs.
Advanced Image Tools and Features
Displaying images
Users can inspect images from COLPOCAMERA in great detail.
Image scaled to 1:1
Enlarged image
Marking function
Users can mark images and write text to the images.
Displaying multiple images
Multiple selected images can be displayed in the same screen.
The same lesions can be compared in chronological order, or similar lesions can be viewed and compared side by side.
Printing function
Printing function
Lesion information attached to an image can be printed for referrals to other medical institutions or requesting opinions from other doctors.
Printing function
Tagging images
Images can be individually tagged with such information as “name of disease,” “location,” “size,” etc.
Searching images
The desired images can be searched by “name of disease,” “name of patient,” “age,” “gender” and other criteria.
Outputting images
Image data can be exported with patient ID information deleted, enabling safe use for papers, etc.
Click here for free download
Product appearance
Product appearance
Designed with the comments of doctors in mind
The grip features an easy-to-hold shape, and the round shape of the camera is soothing to jittery patients, while the white color and compact body create a clean appearance. These design features put high priority on the type of usability requested by doctors.
Designed with the comments of doctors in mind
Easy to operate
Frequently used operations are assigned to easily located buttons.
With a single touch of a button, users can switch between shooting modes.
Main specifications
COLPOCAMERA DZ-C100
ModelDZ-C100
Price
Valid pixels5184×3888　Approx. 20.16 megapixels
Imaging element1/2.3-inch CMOS (back-illuminated type)
Total pixels5352×3950　Approx. 21.14 megapixels
Imaging file formatStill imagesJPEG (Exit Ver 2.3), DCF2.0 compliant, DPOF non-compliant
Recorded pixels：20M（5184×3888）／12M（3968×2976）／5M（2560×1920）
VideoMOV format, H264/AVC-compliant, IMA-ADPCM audio (monaural)
Recorded pixels: 1600×1200 (UXGA), 30 fps
Recording MediaSD Memory Card, SDHC Memory Card, SDXC Memory Card
Recoding capacityStill imagesRecording media 16MB1,860 shots
VideoMaximum video file sizeMax. 1.4GB per video (10-min. video)
Recording media 16GBApprox. 1 hr. 55 mins.
LensConstruction10 elements in 7 groups
F-numberF3.3
Focal distancef=33.43
35mm Film Equivalent233 mm (single-focus lens with filter switching unit)
ZoomDigital zoom 8x
Zoom resulution：0.1x
ISO Sensitivity (Standard Output Sensitivity)Auto
Data transfer methodWi-Fi / micro USB cable / SD memory card
Communication functionCompliant standard: IEEE 802.11b/g/n, range of frequencies used:
1‒11 ch, encryption method: WPA2
Image monitor3.0 TFT color LCD, 720×480 pixels, 1036800 dots (RGB)
Capacitance touch panel
External connection terminalsMicro USB port (Hi-Speed USB compliant), HDMI™ output (Micro / Type D)
The terms HDMI, HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
Power supplyLithium-ion battery (DNP-100M) × 1
Battery lifeNumber of shotsApprox. 180 shots
Actual video recording timeApprox. 45 mins. (during continuous recording)
Size127.5 × 76.0 × 78.0 mm (5.0" × 3.0" × 3.1") (W × H × D)
WeightApprox. 426g (15oz) (incl. battery & memory card),
approx. 379g (13.4oz) (w/o battery & memory card)
Bundled accessoriesLithium-ion battery (DNP-100M),
AC adapter for charging main body, lens cap

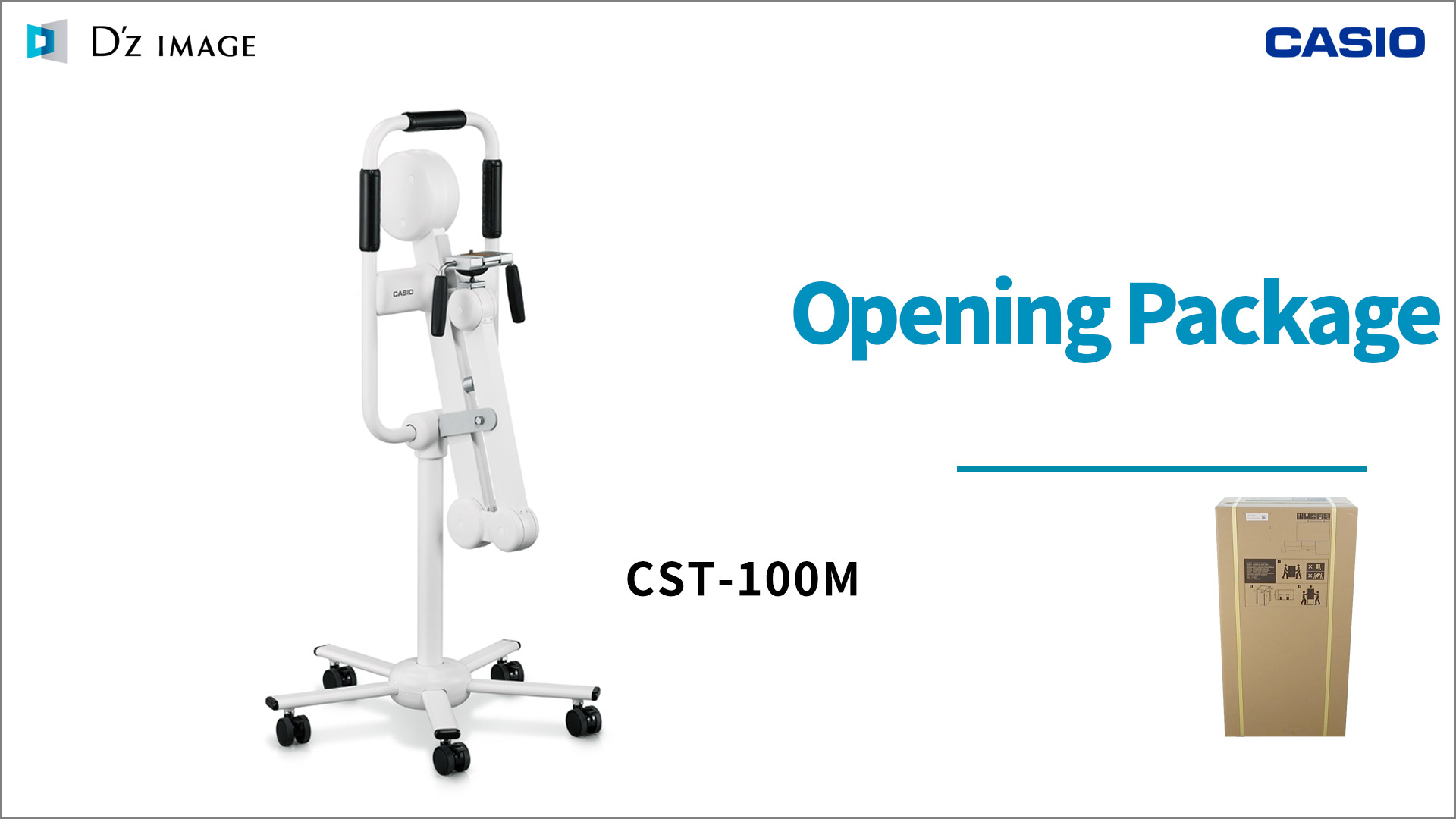

CAMERASTAND CST-100M
ModelCST-100M
SizeWhen usingRange of arm up/down motion: 300 mm, range of rotation: 360°
When stored away Diameter 513 mm, height 924 mm
WeightApprox. 13.3 kg

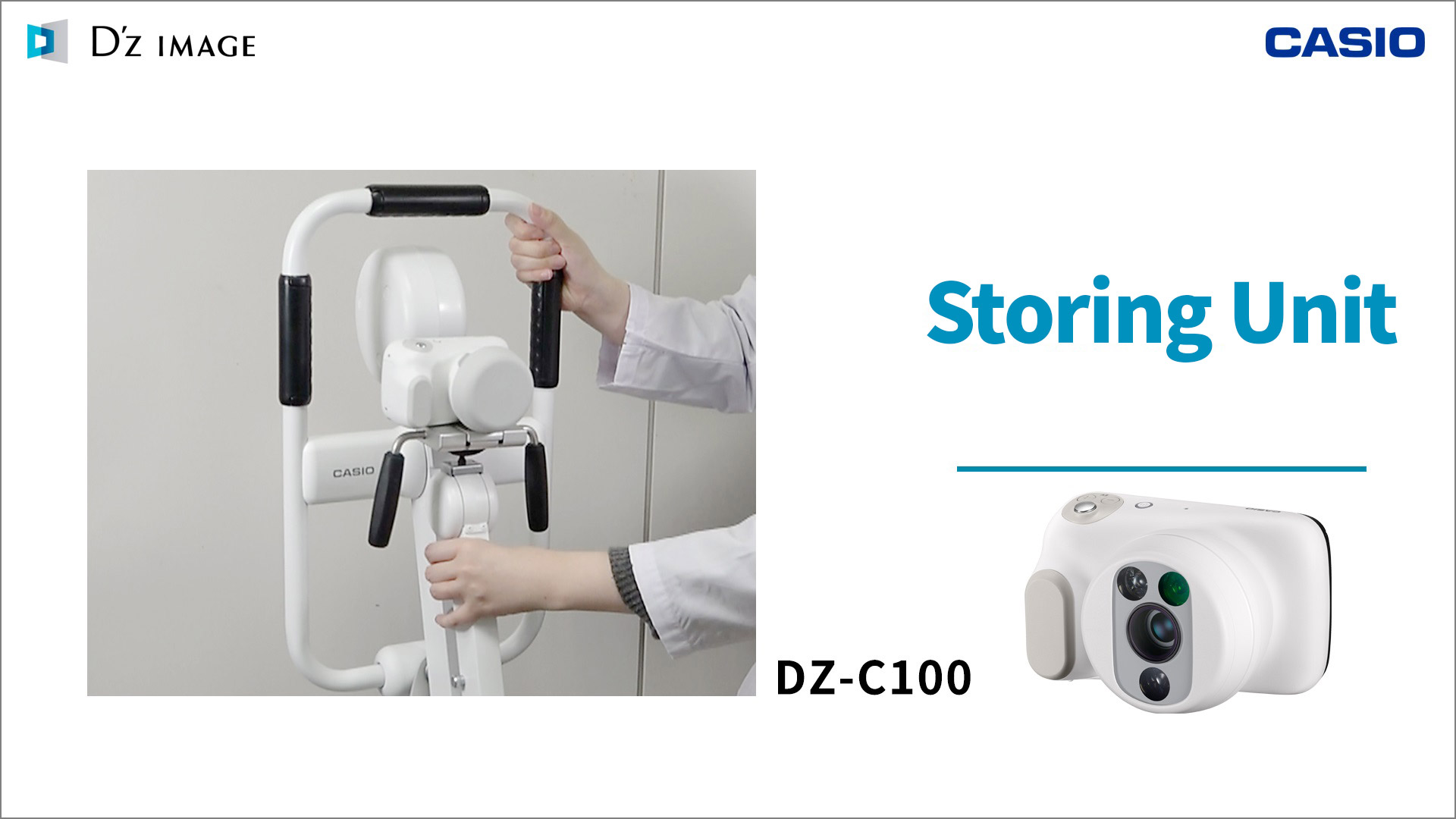

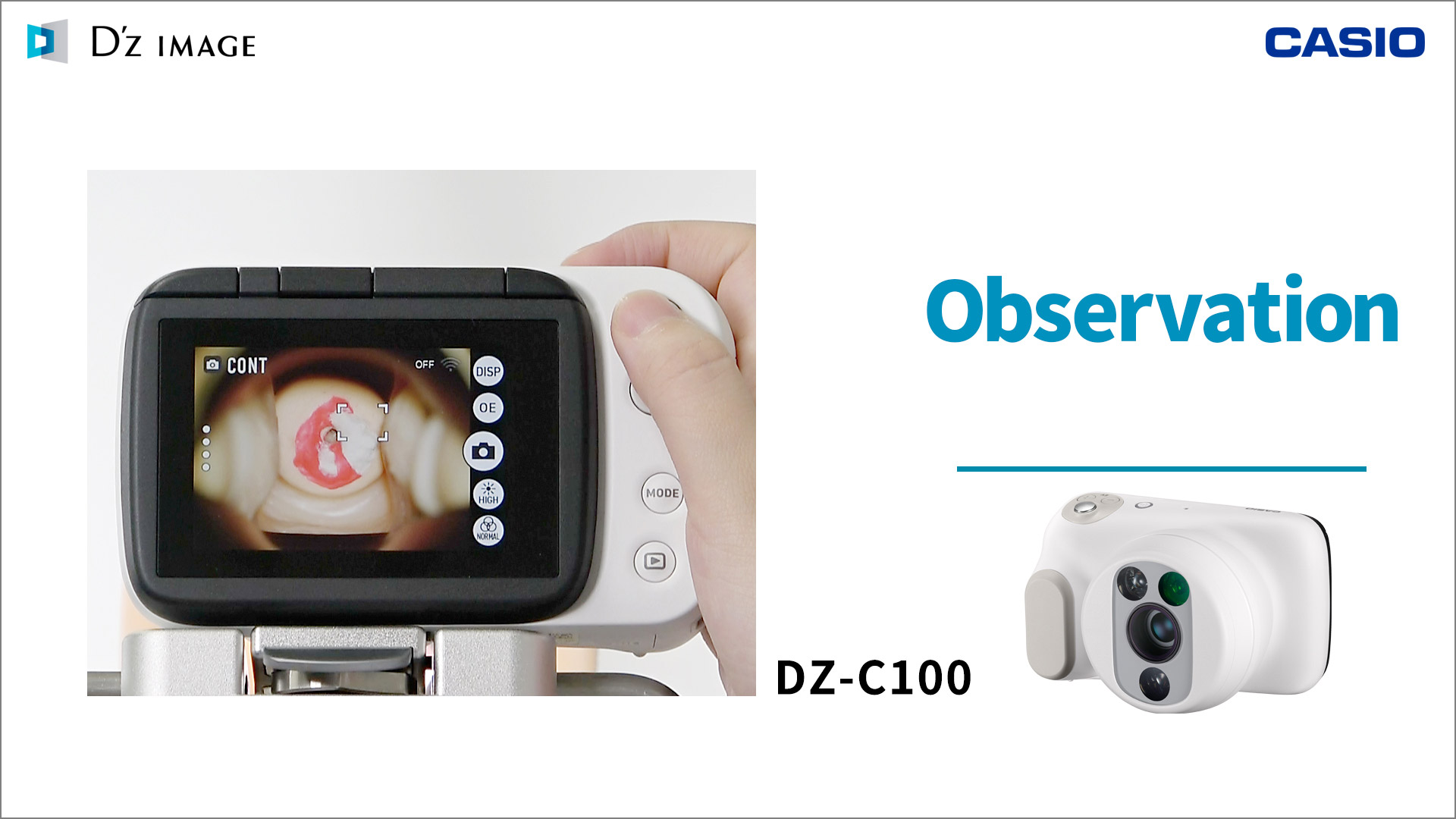

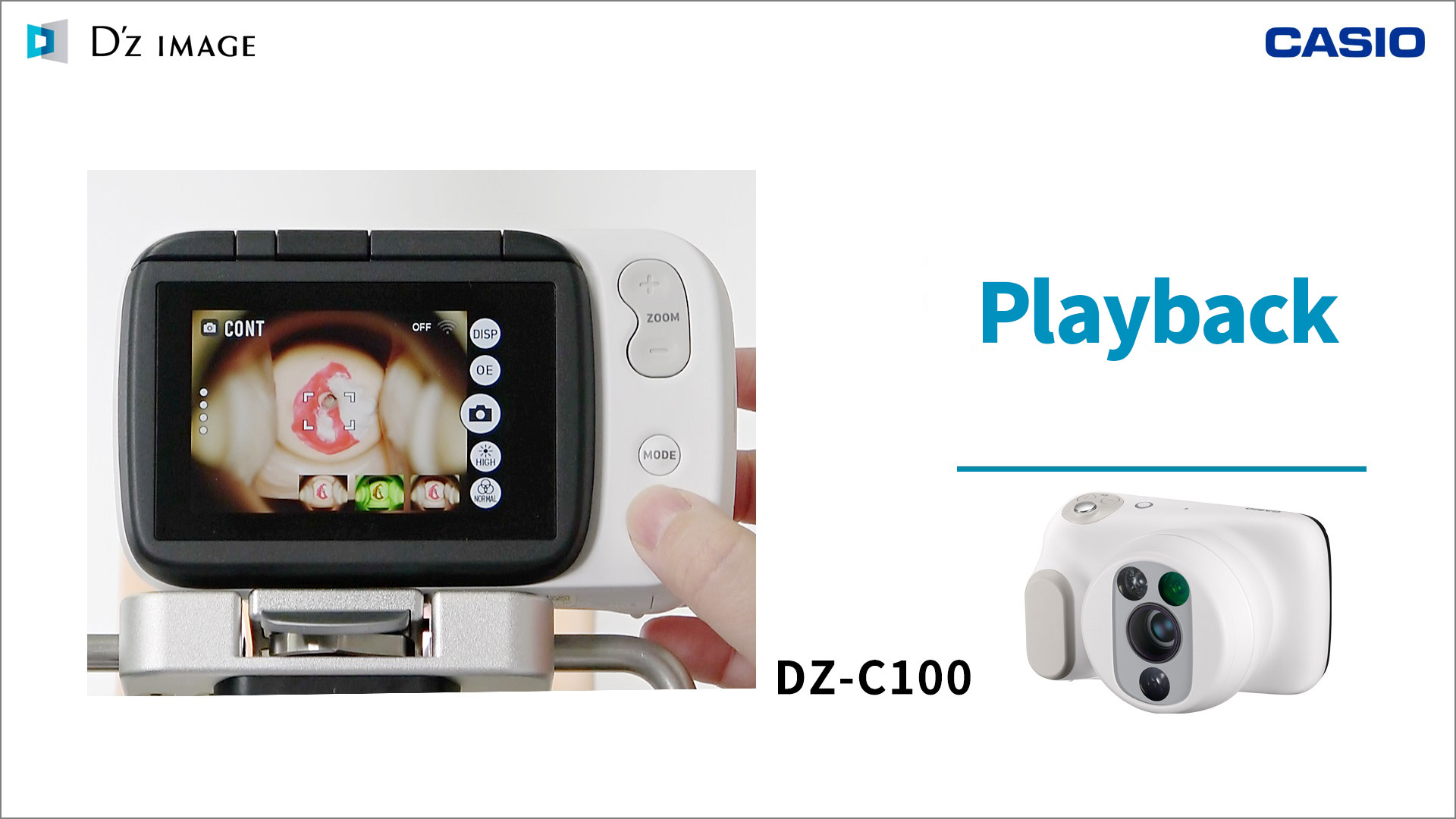

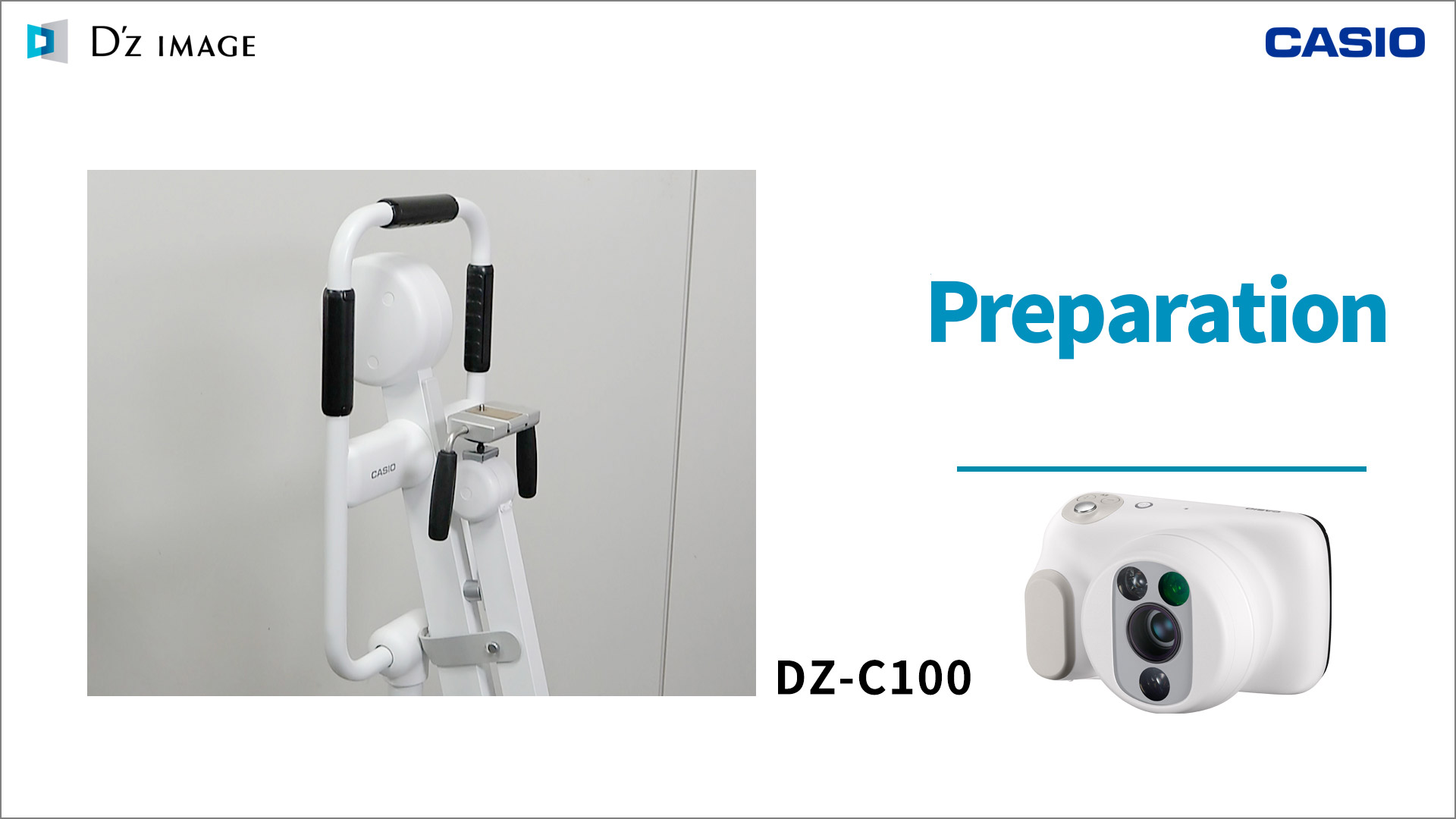

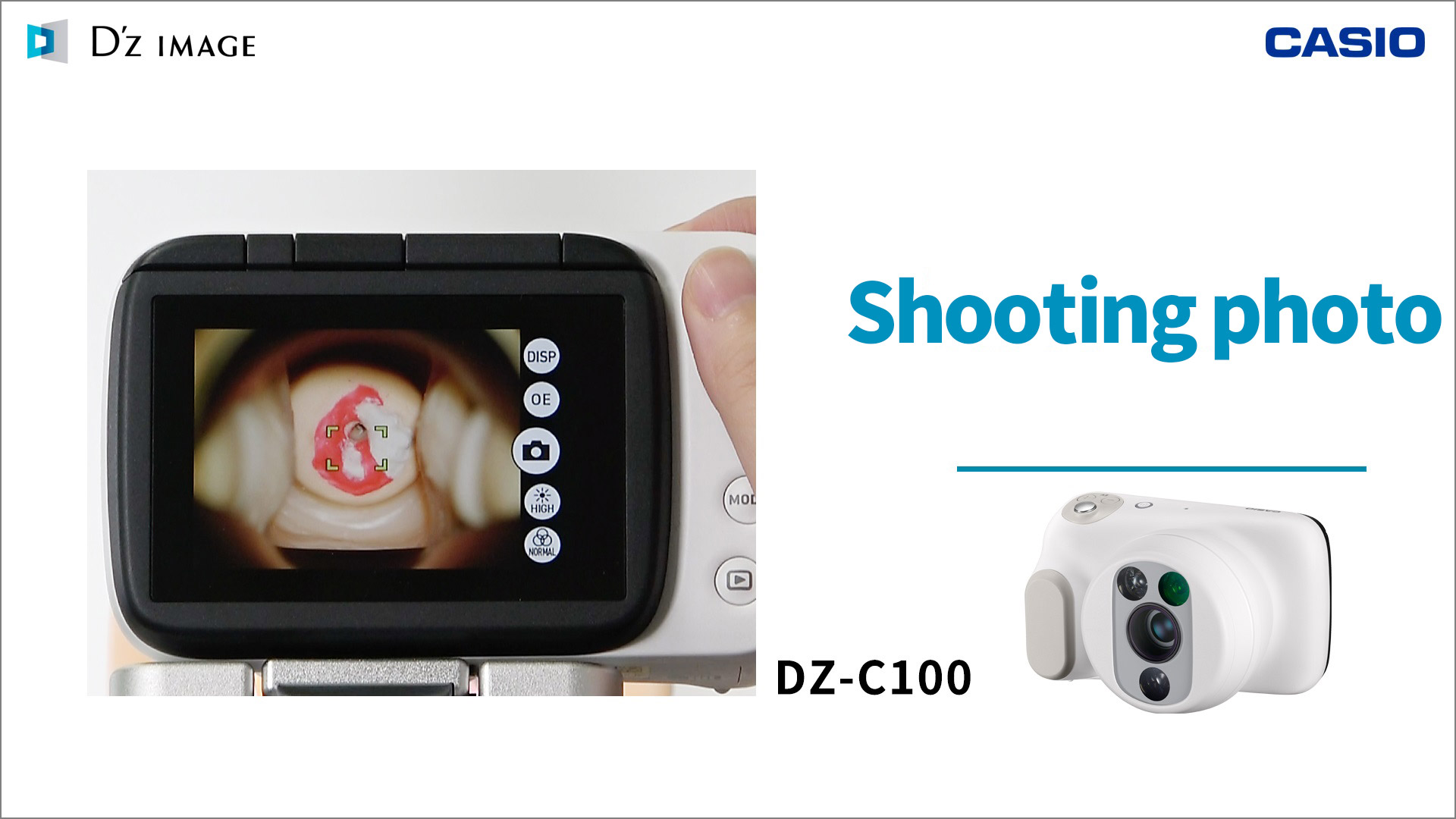

Operation explanation (Video)
Replay all videos
Replay all videos
Replay a video one by one

Replay all videos
Some specifications may differ depending on the country / region of sale.
